As the building industry has advanced and enclosures have become more efficient and tighter, the ever present problem of moisture continues to plague projects. The infiltration of moisture can lead to structural deterioration, shorten the life of exterior claddings and paints, while also fostering mold and rot which will harm the structure and pose health hazards.

With these conditions, the key becomes the removal of liquid bulk water and water vapor as quickly as possible to avoid damage to structural components and this is where Tamlyn and its multiple options of Water Management Systems excels.

The key to building durable structures is more than just applying building paper or a wrap. It’s about employing tried and proven water management principles to develop a moisture management system that addresses all the mechanisms of moisture movement. It is a guide for architectural design, product selection and construction practice. Preventing moisture damage and call backs is really about implementing a system to effectively control moisture as a liquid and as a vapor.

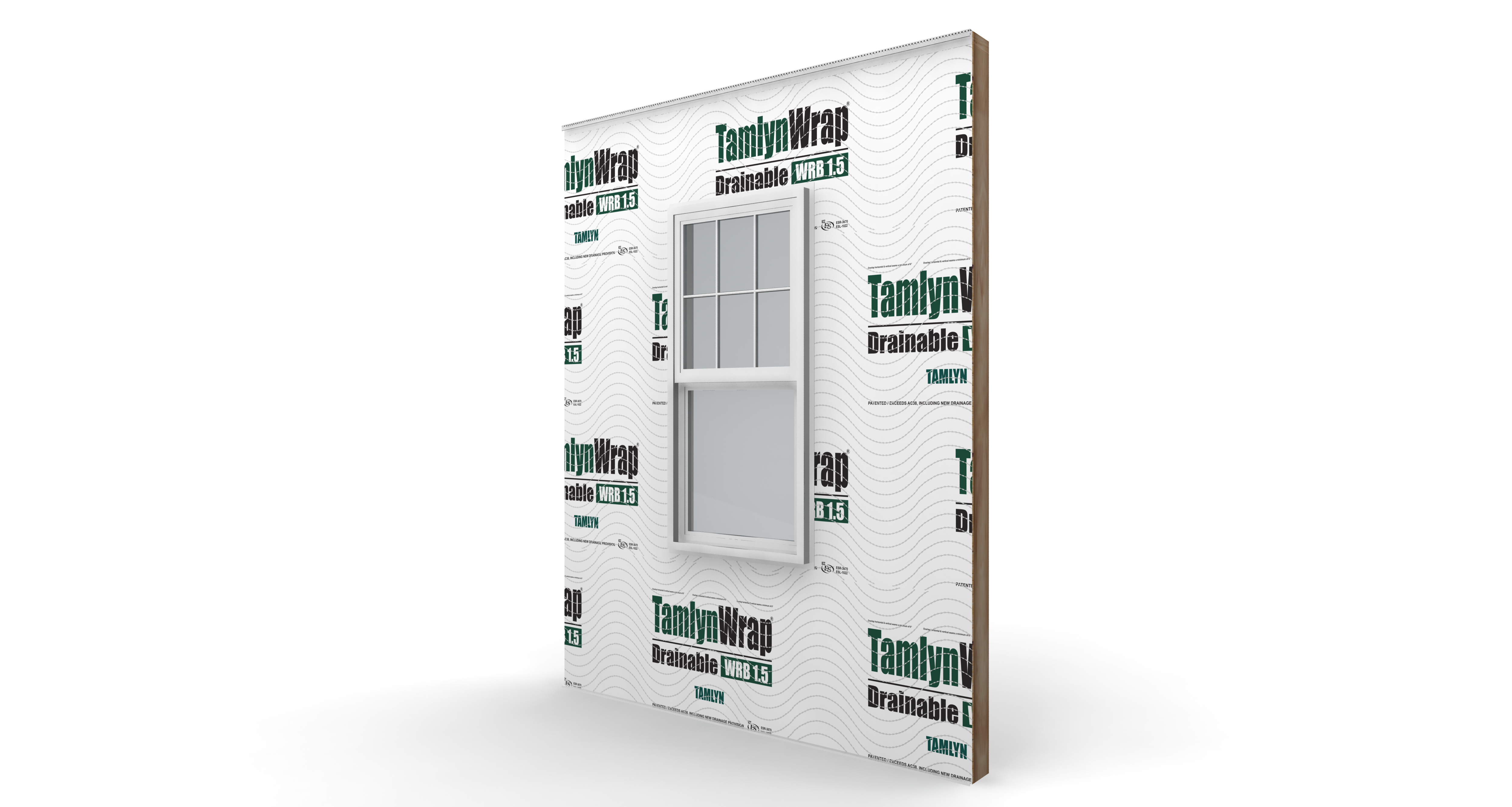

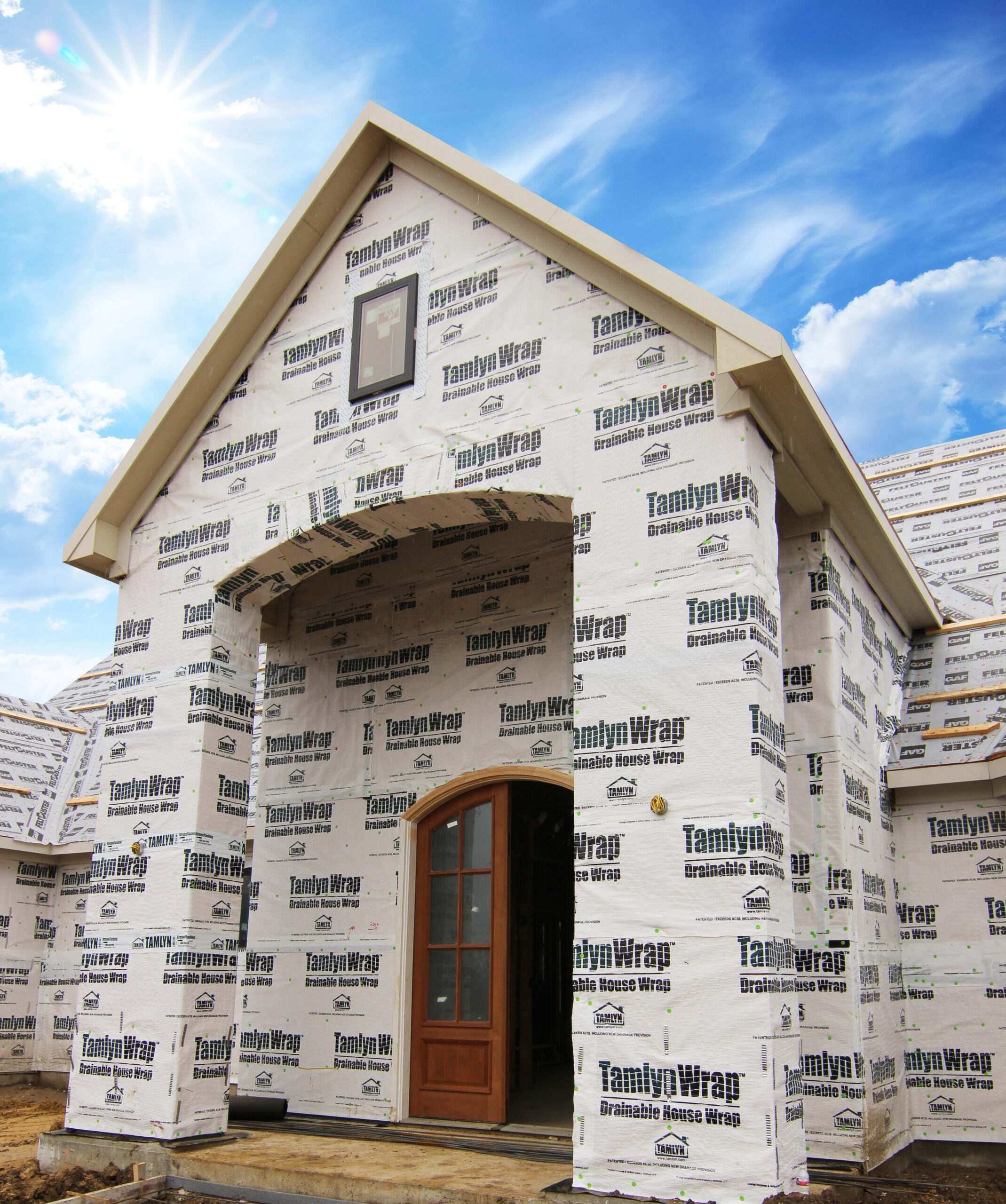

TamlynWrap® Drainable Wrap

TamlynWrap® Drainable Wrap is the superior moisture management product from Tamlyn. This innovative product effectively eliminates excess moisture and mitigates the damaging effects of mold and rot. Its unique design removes at least 100 times more bulk water from a wall versus standard housewraps.

DRAINS 2X FASTER THAN OTHER DRAINABLE WRAPS

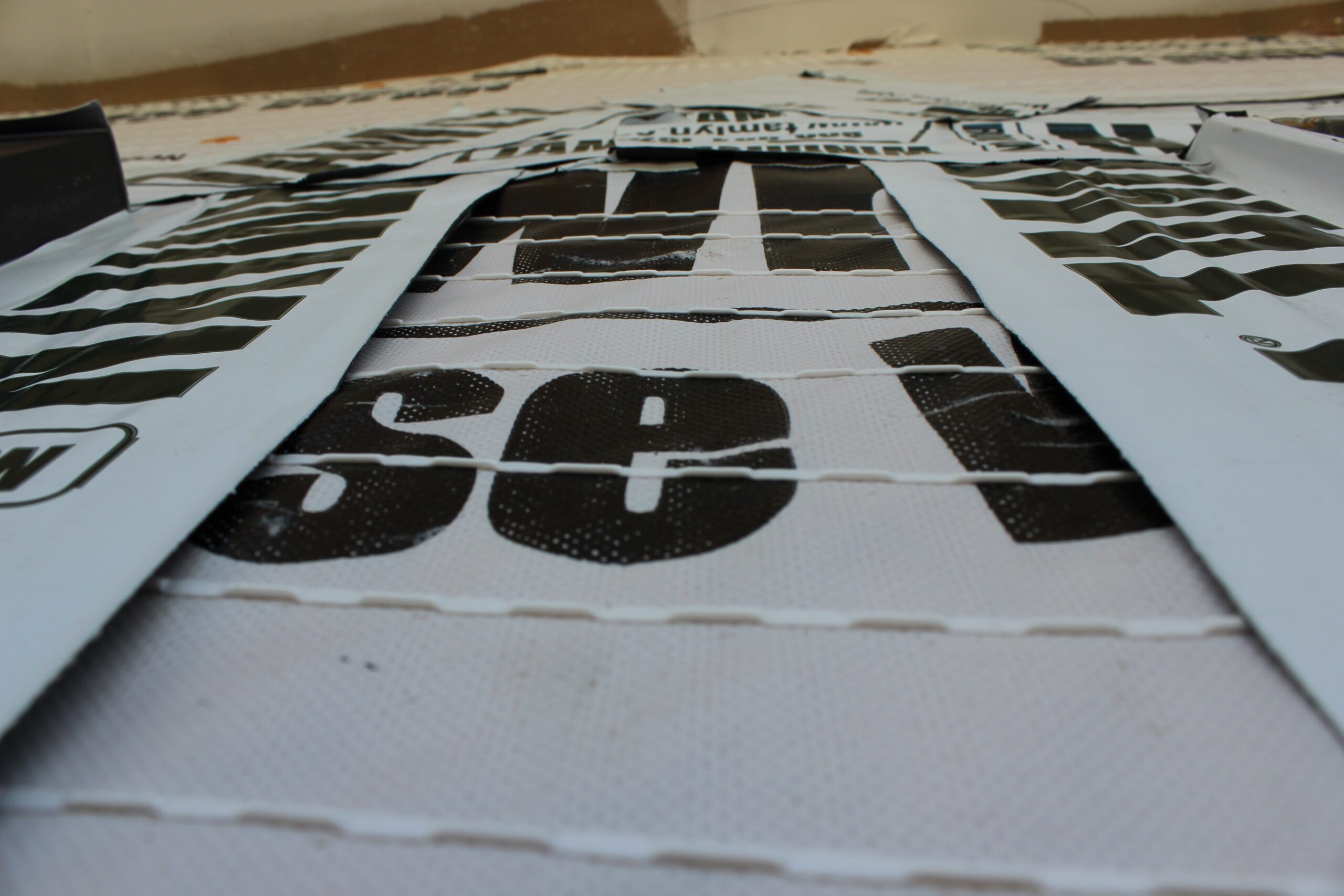

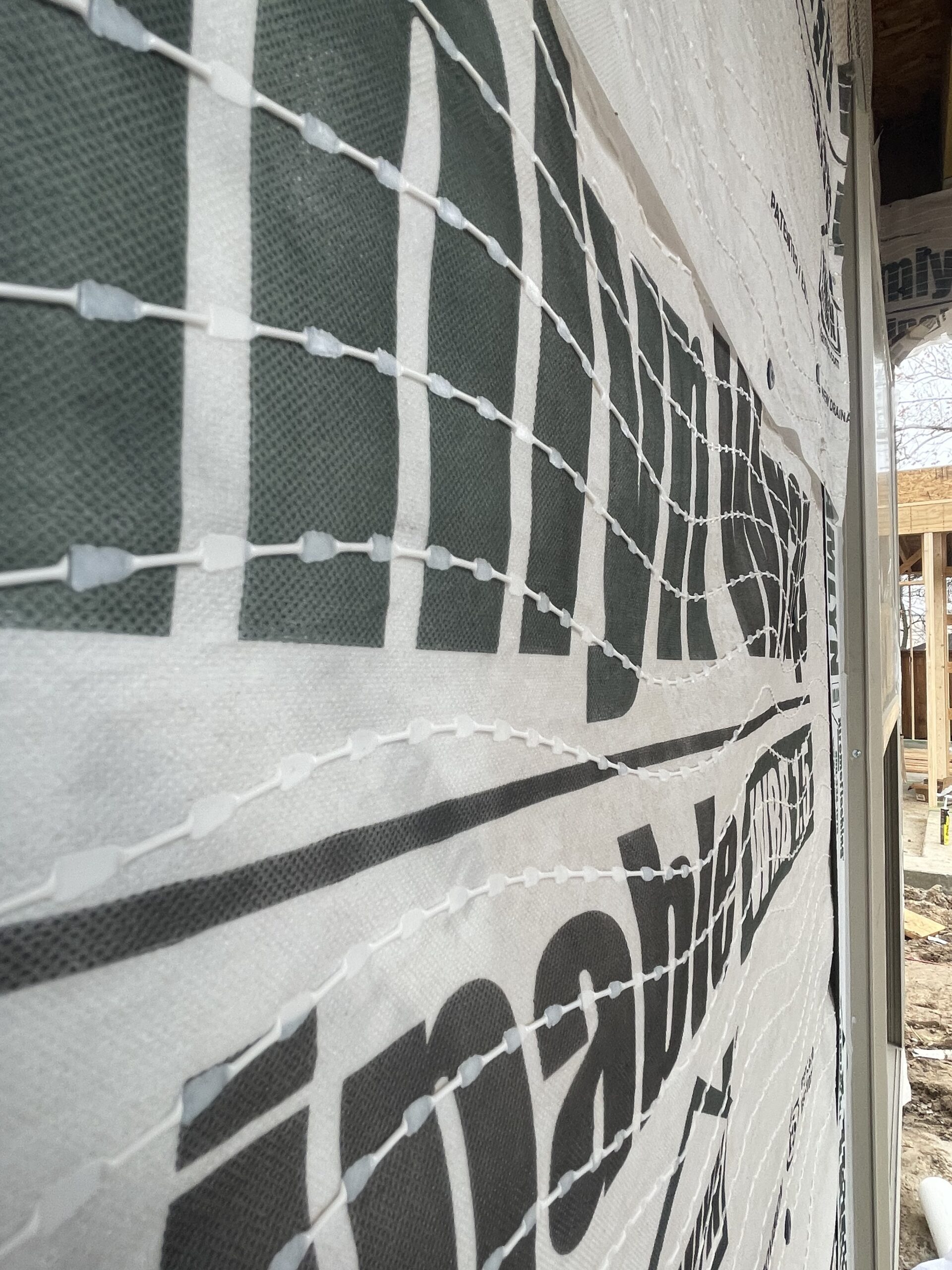

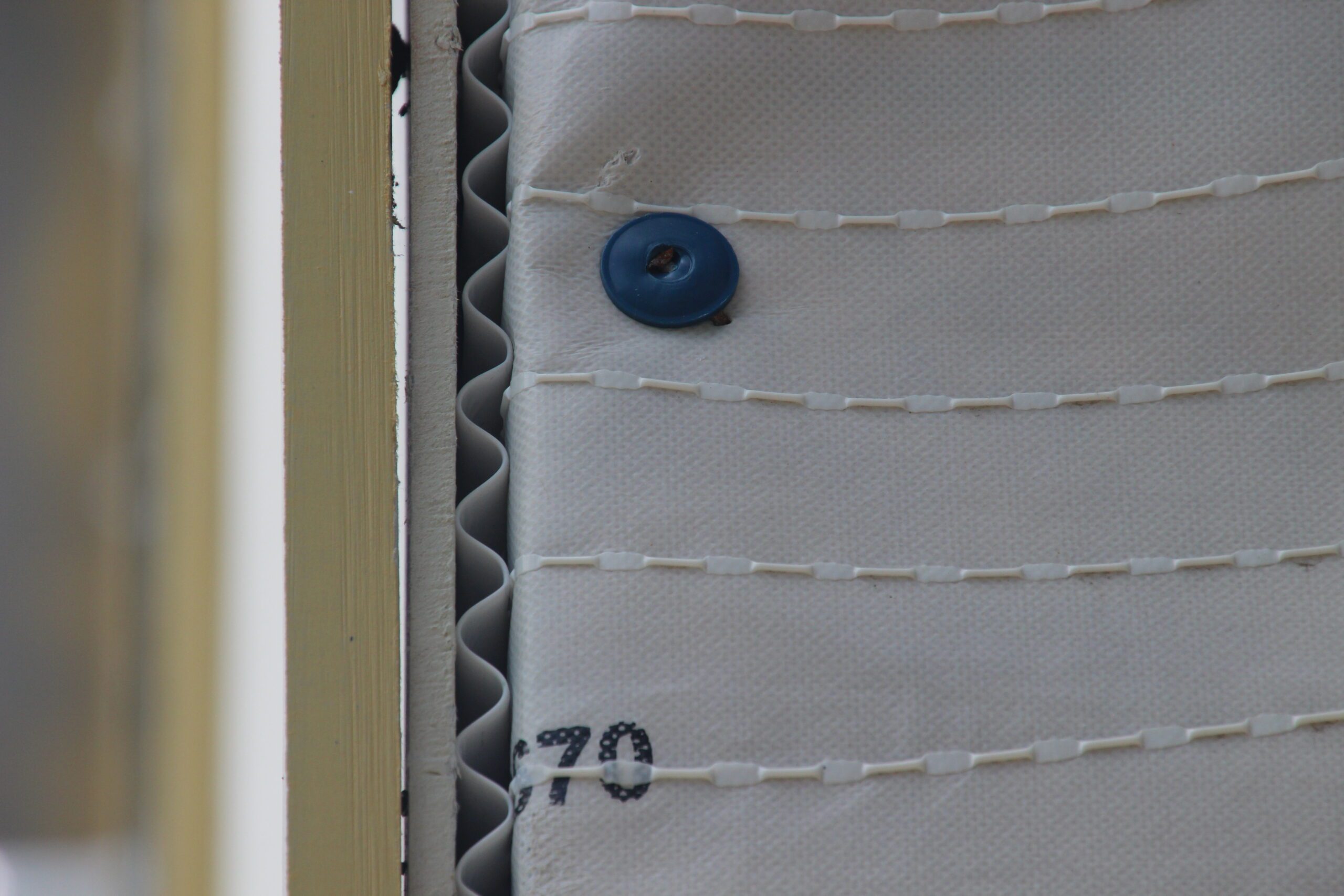

This is achieved through the gap created by 1.5 mm spacers bonded to a high performance housewrap. This patented gap design provides a true drainage space between the sheathing and cladding material.

MEETS ALL EXISTING CODE REQUIREMENTS

Meets or exceeds the ICC acceptance criteria requirements for water resistive barriers (AC38) and drainage efficiency.

EASY INSTALLATION

Drainage pattern is omni-directional, so it can be installed in any direction. Non-woven structure is light weight, flexible and easy to integrate with other wall components. The roll size is safer to handle at elevated levels.

SUPERIOR WARRANTY

Backed by a 15 year product or 25 year product and labor limited warranty. Patented technology.

Additional Products

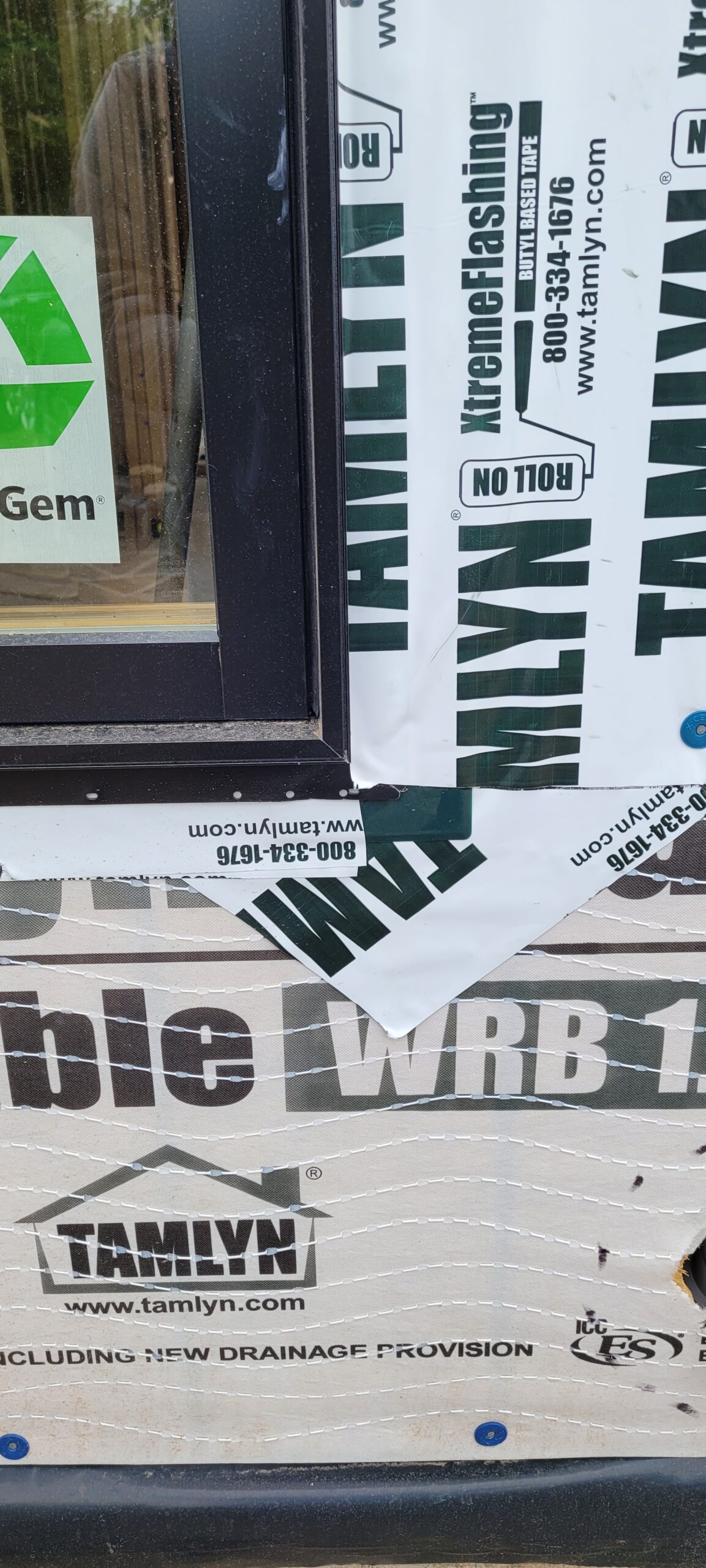

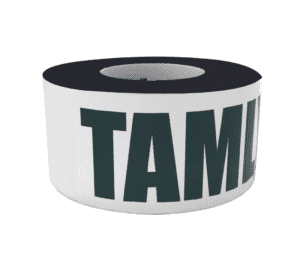

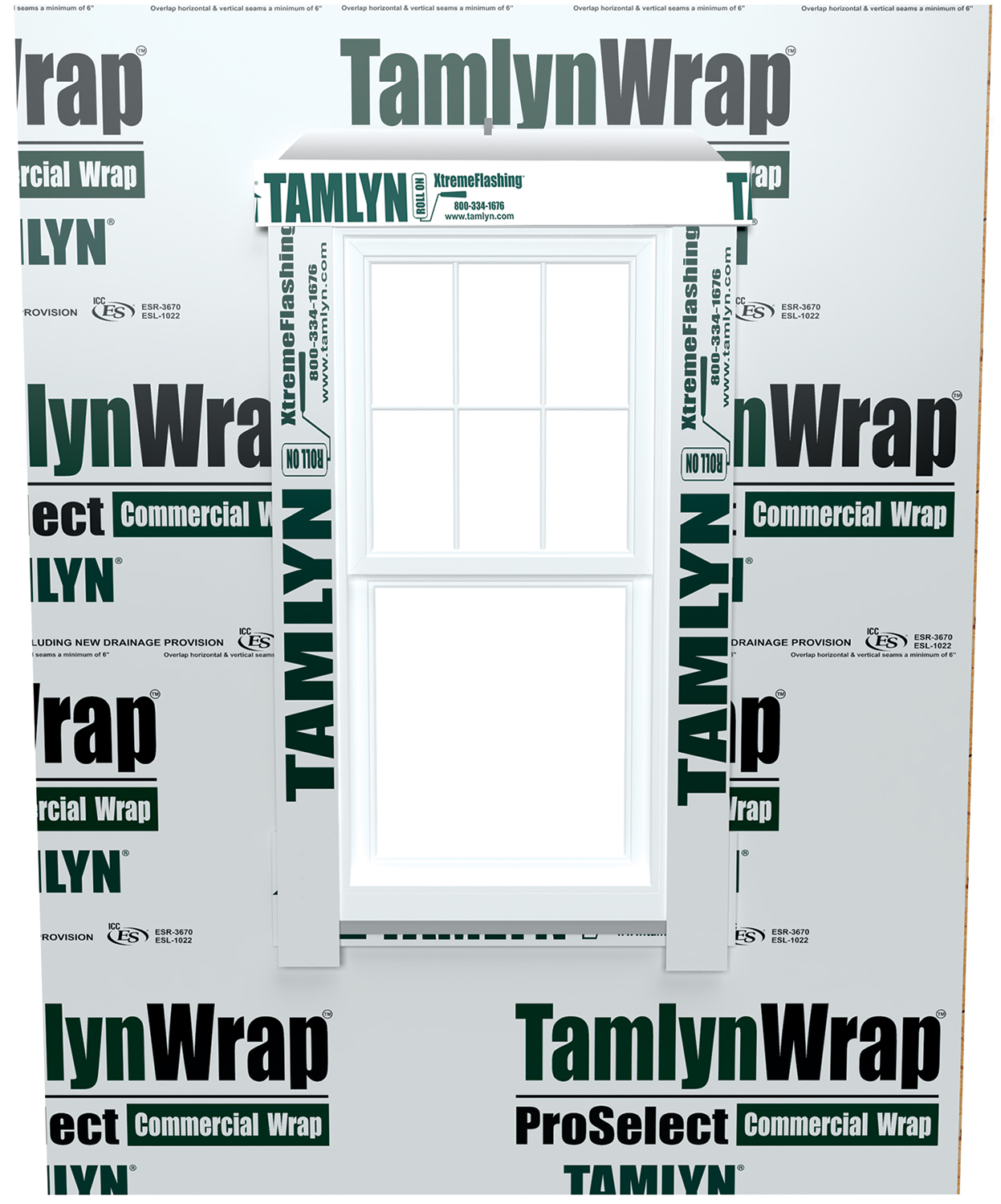

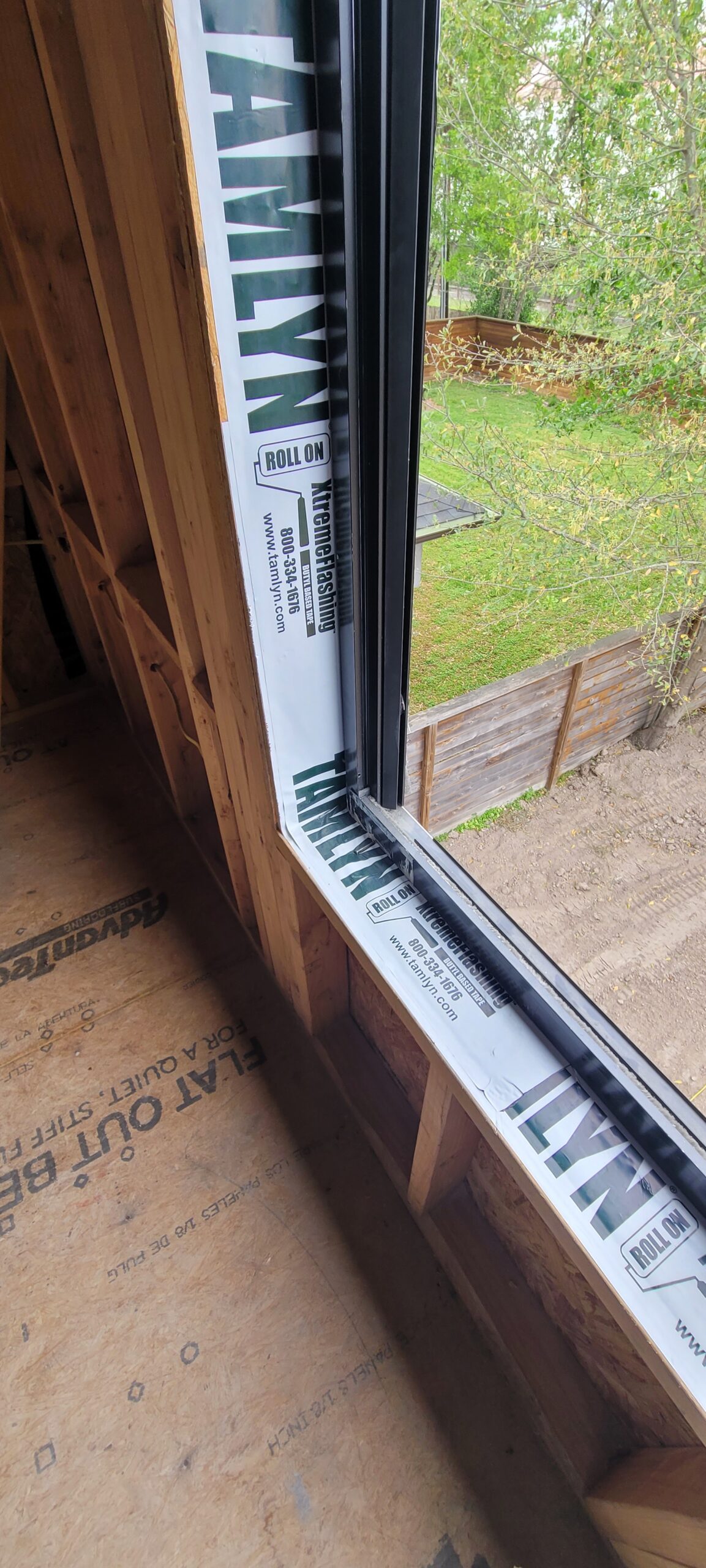

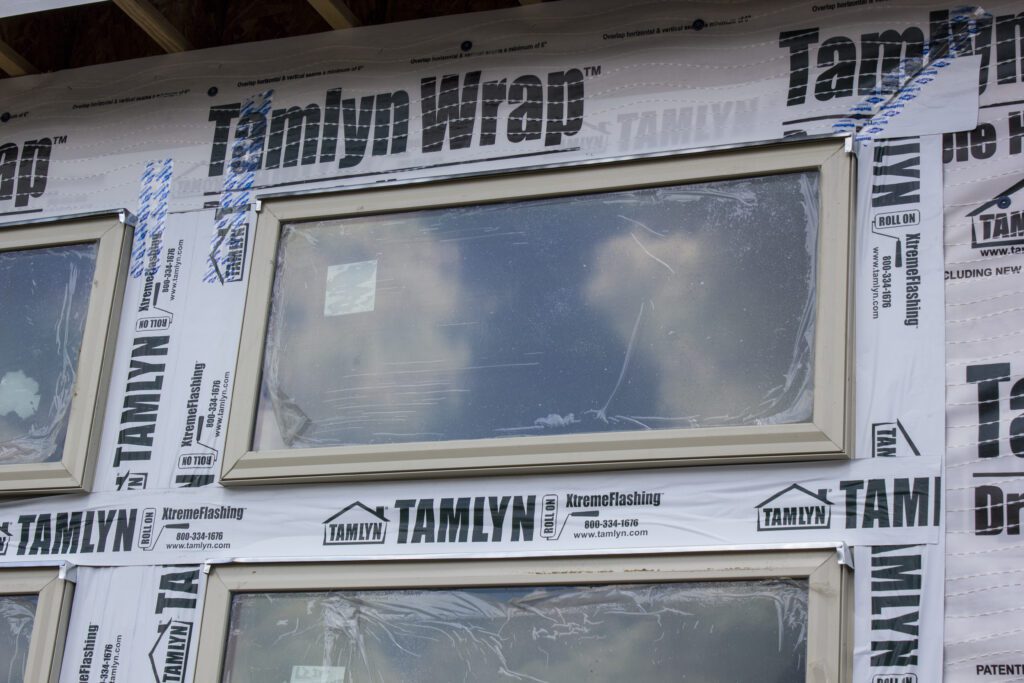

XtremeFlashing™ Butyl Tape

Self-adhering, self-sealing waterproofing tape designed for use around windows, doors, building seams and in general construction.

Details

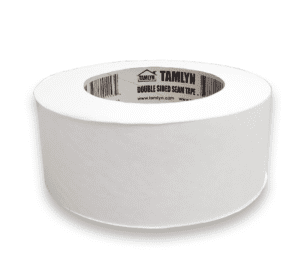

XtremeSeam™ Tape

A unique 2″ wide by 65 foot double sided butyl tape for sealing horizontal and vertical overlaps.

Details

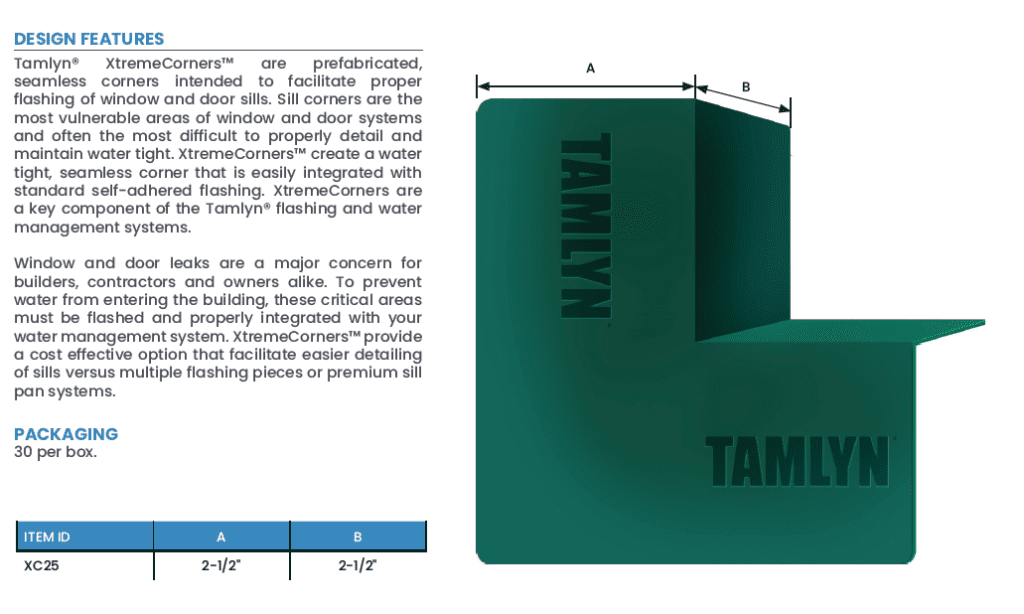

XtremeCorner™

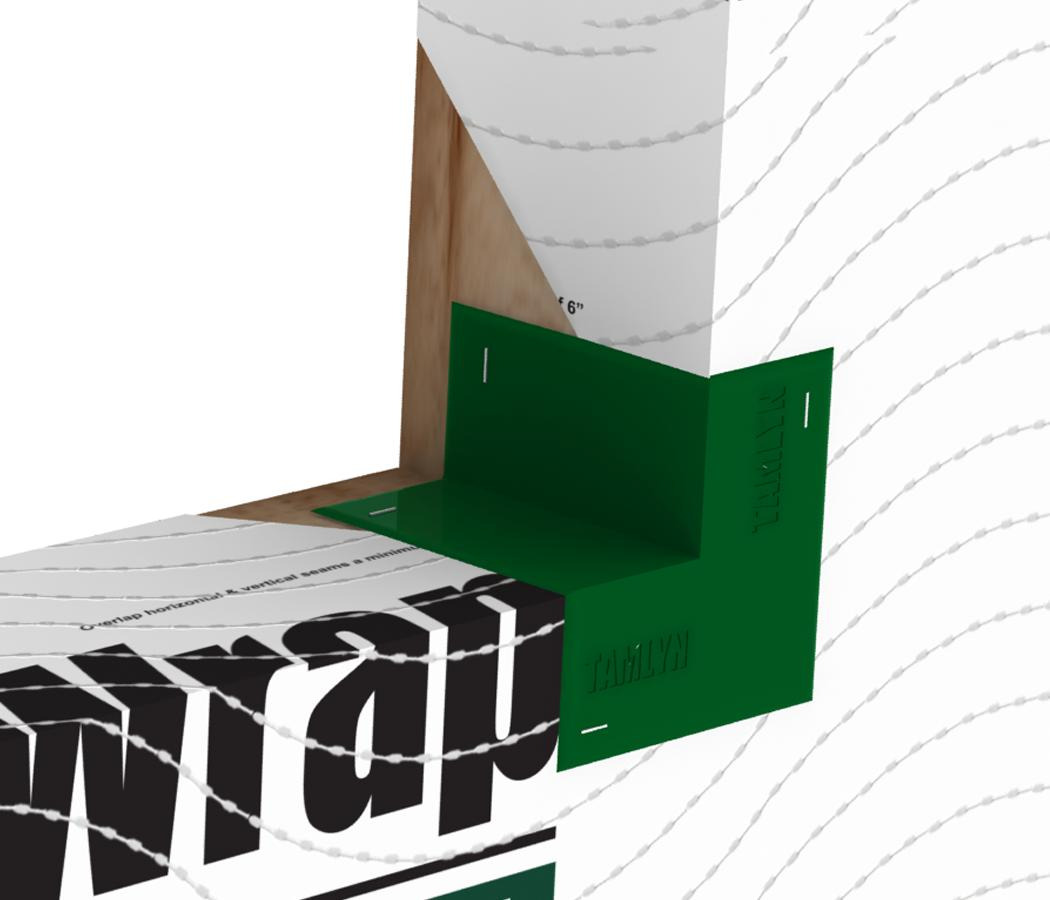

Prefabricated, seamless corners intended to facilitate proper flashing of window and door sills.

Details

XtremeFlashing™ Butyl Tape

Self-adhering, self-sealing waterproofing tape designed for use around windows, doors, building seams and in general construction.

Product Colors

XtremeSeam™ Tape

A unique 2″ wide by 65 foot double sided butyl tape for sealing horizontal and vertical overlaps.

Product Colors

XtremeCorner™

Prefabricated, seamless corners intended to facilitate proper flashing of window and door sills.

Product Colors

Specifications, Sizes and Details

PRODUCT: XtremeFlashing Synthetic Butyl Tape

ITEM ID: WSB20-6, WSB20-9

XtremeFlashing is a self-adhering, self-sealing waterproofing tape designed for use around windows, doors, building seams and in general construction. It is composed of a white polymer film that is coated with an aggressive Broad Temperature Spectrum (BTS) asphalt adhesive. A release liner protects the adhesive and is removed as the tape is installed.

The BTS adhesive self-seals around punctures such as nails and staples. This advanced system bonds to all common building and window materials and seals around fasteners to prevent damage caused by water penetration.

INTENDED USES:

XtremeFlashing is a self-adhering, self-sealing waterproofing tape designed for use around windows, doors, building seams and in general construction. It is composed of a white polymer film that is coated with an aggressive Broad Temperature Spectrum (BTS) asphalt adhesive. A release liner protects the adhesive and is removed as the tape is installed.

The BTS adhesive self-seals around punctures such as nails and staples. This advanced system bonds to all common building and window materials and seals around fasteners to prevent damage caused by water penetration

Also available in synthetic butyl designed for any climate. Available in 4″x75′, 6″x75′, 9″x75′, and 12″x75′.

View Product Brochure>>



Specifications, Sizes and Details

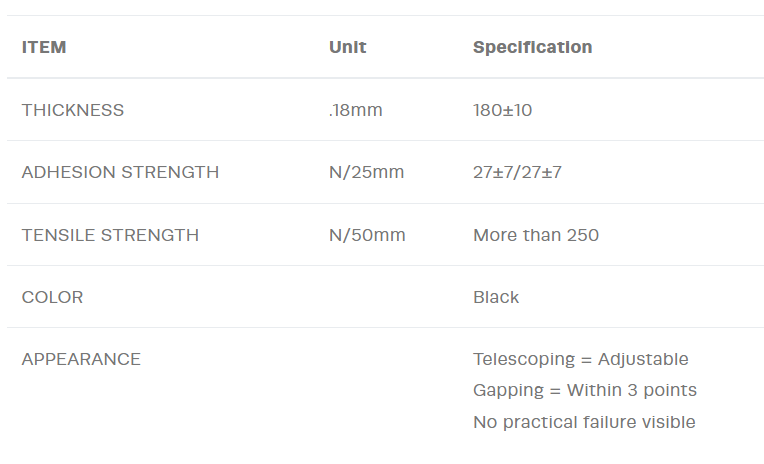

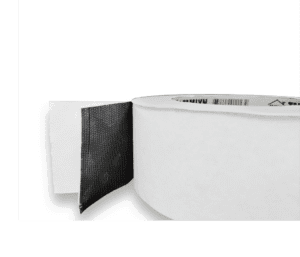

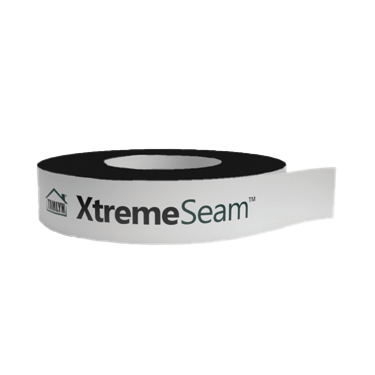

PRODUCT: XtremeSeam Tape

ITEM ID: XS265

A unique 2″ wide by 65 foot double sided butyl tape for sealing horizontal and vertical overlaps. Vital for maintaining proper shingling on horizontal laps. XtremeSeam Tape is durable material that has superior resistance to a variety of weather elements. XtremeSeam Tape exceeds all of the requirements of the single ply roofing industry for splicing material.

ROLL SIZE: 2 in x 65 ft

SHELF LIFE: 12 months after the delivery date as long as the rolls are stored in a dark and cool place.




View Product Brochure>>

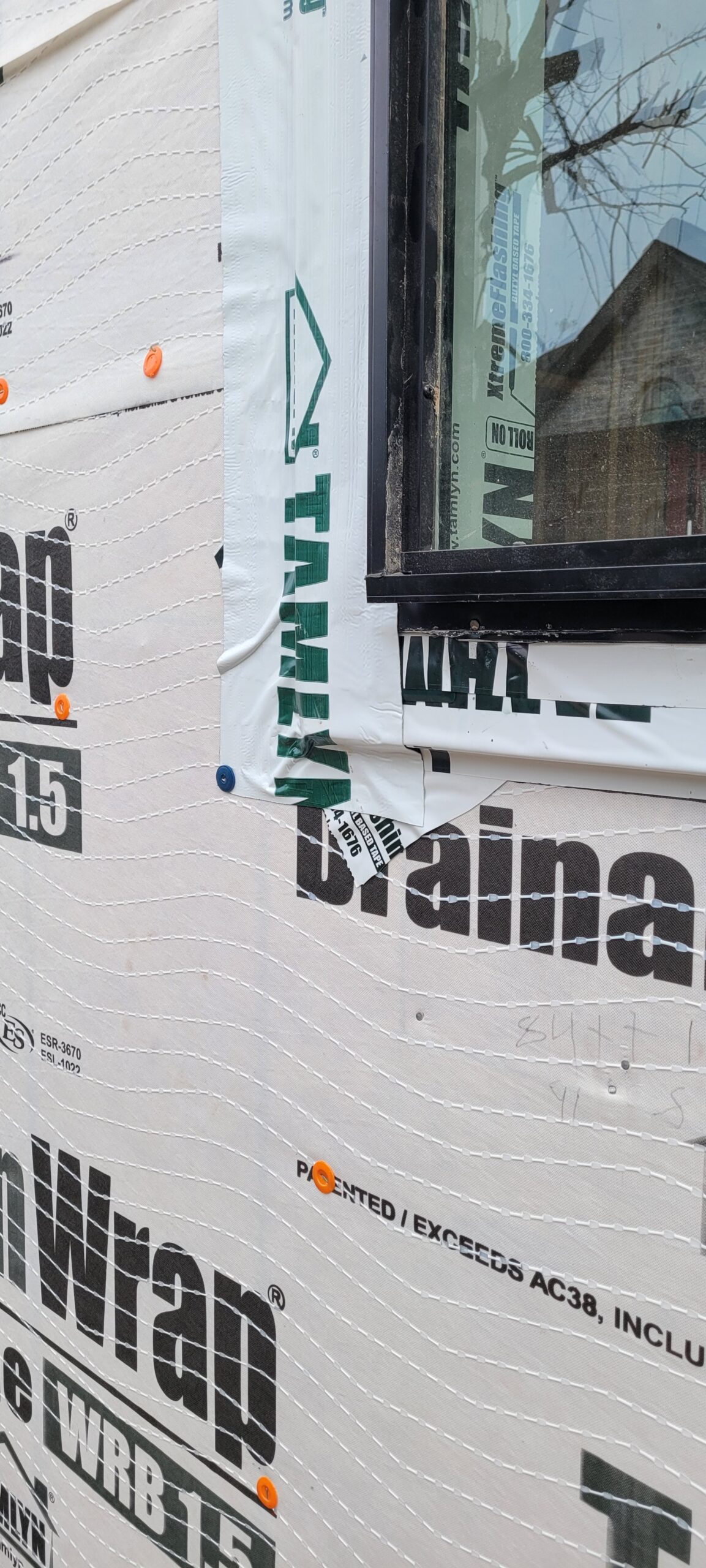

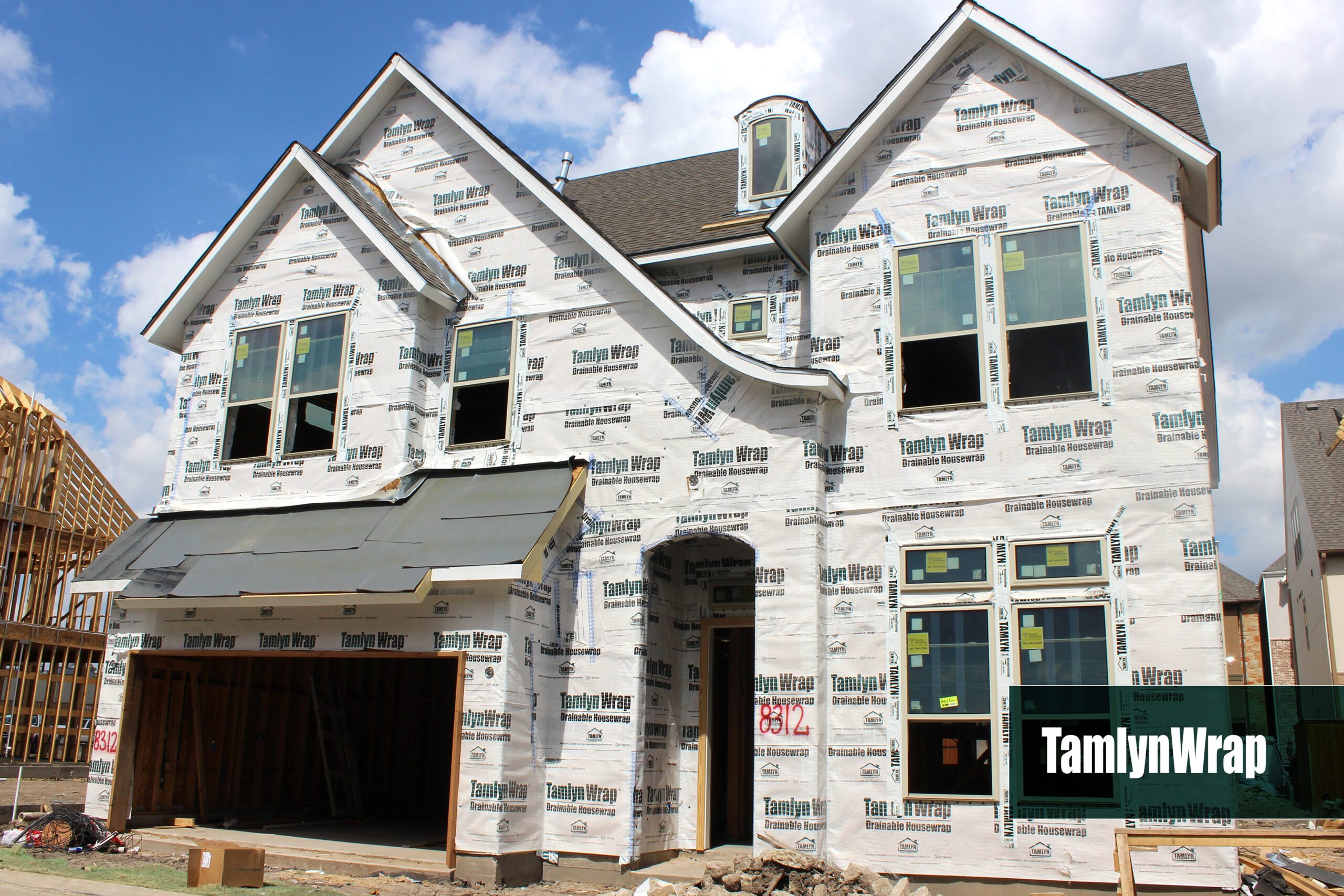

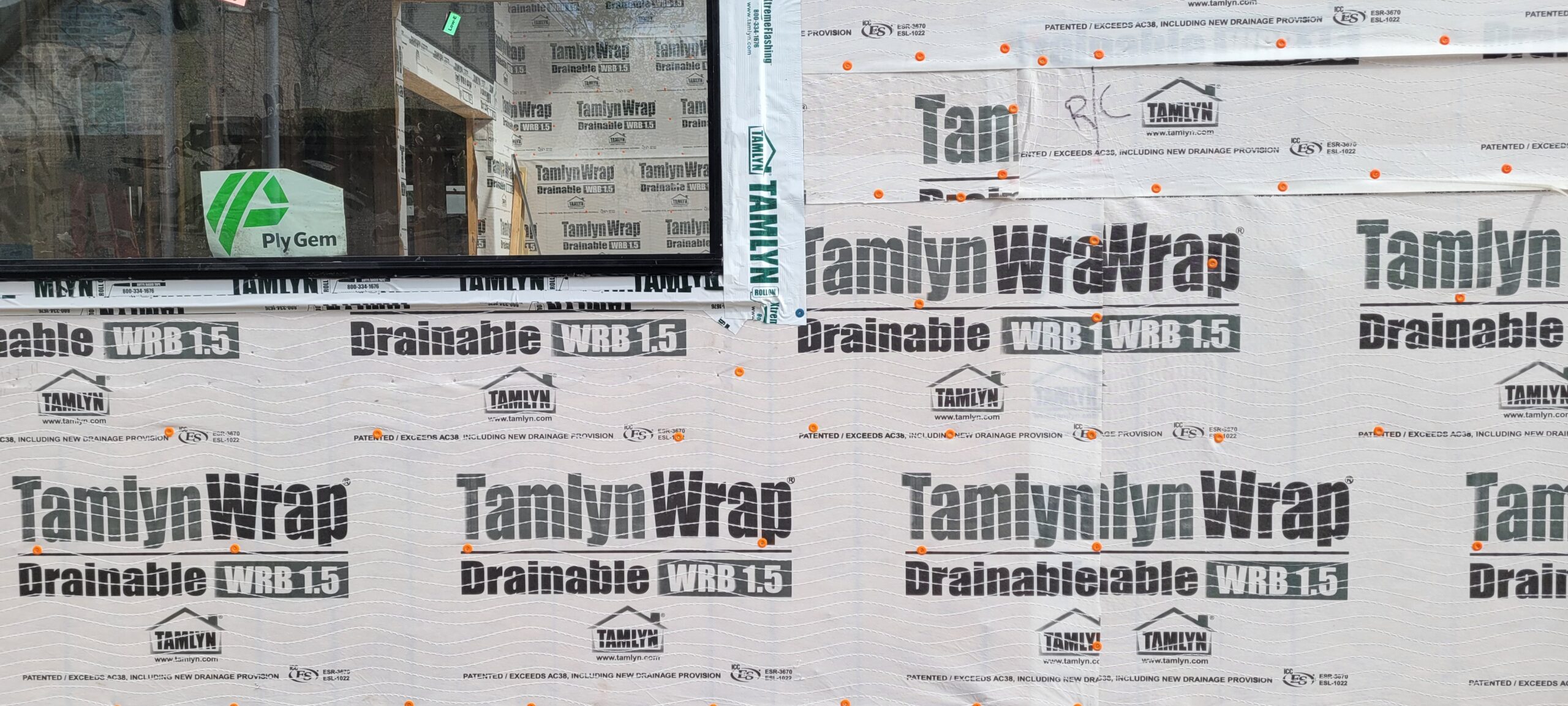

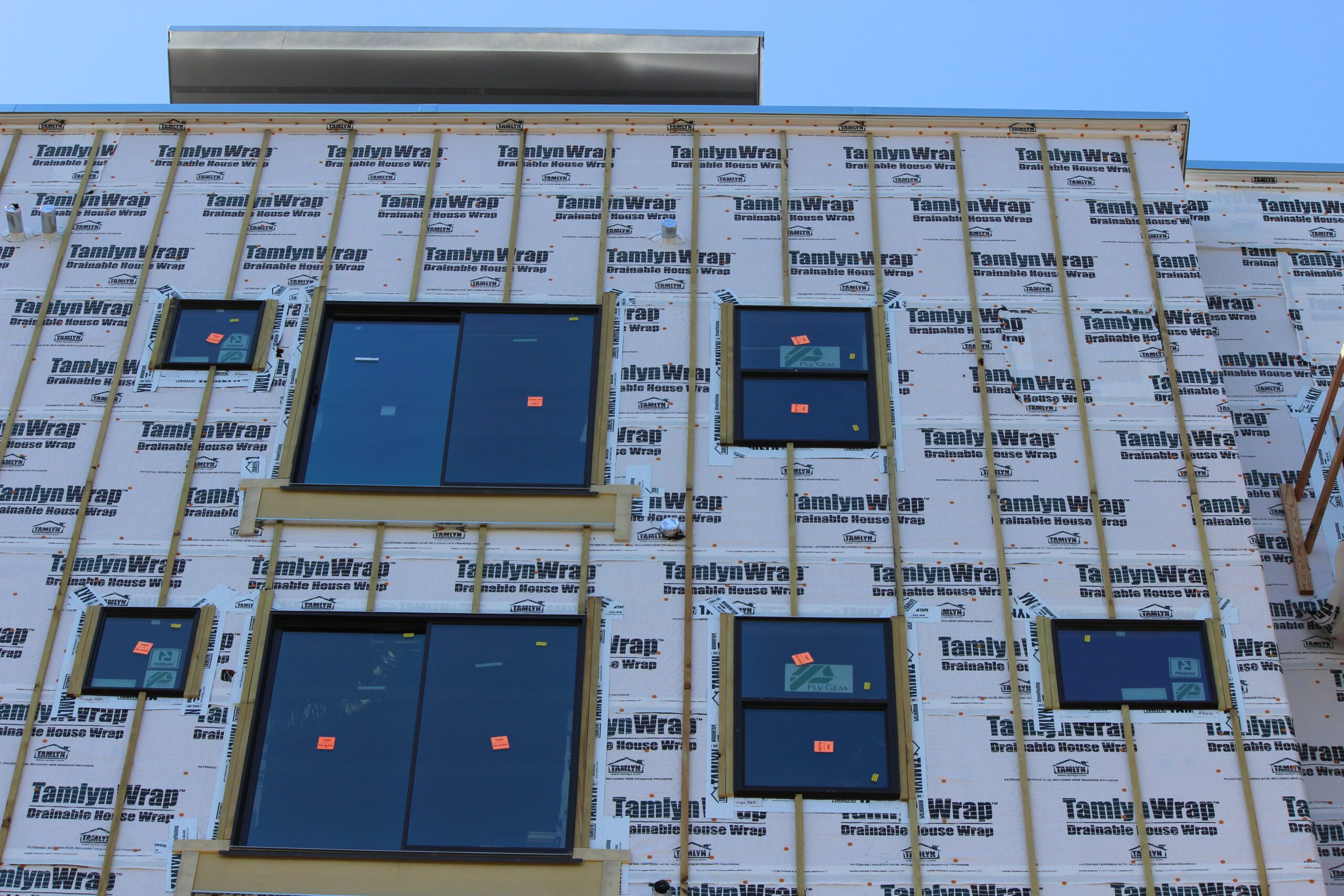

Inspiration Gallery

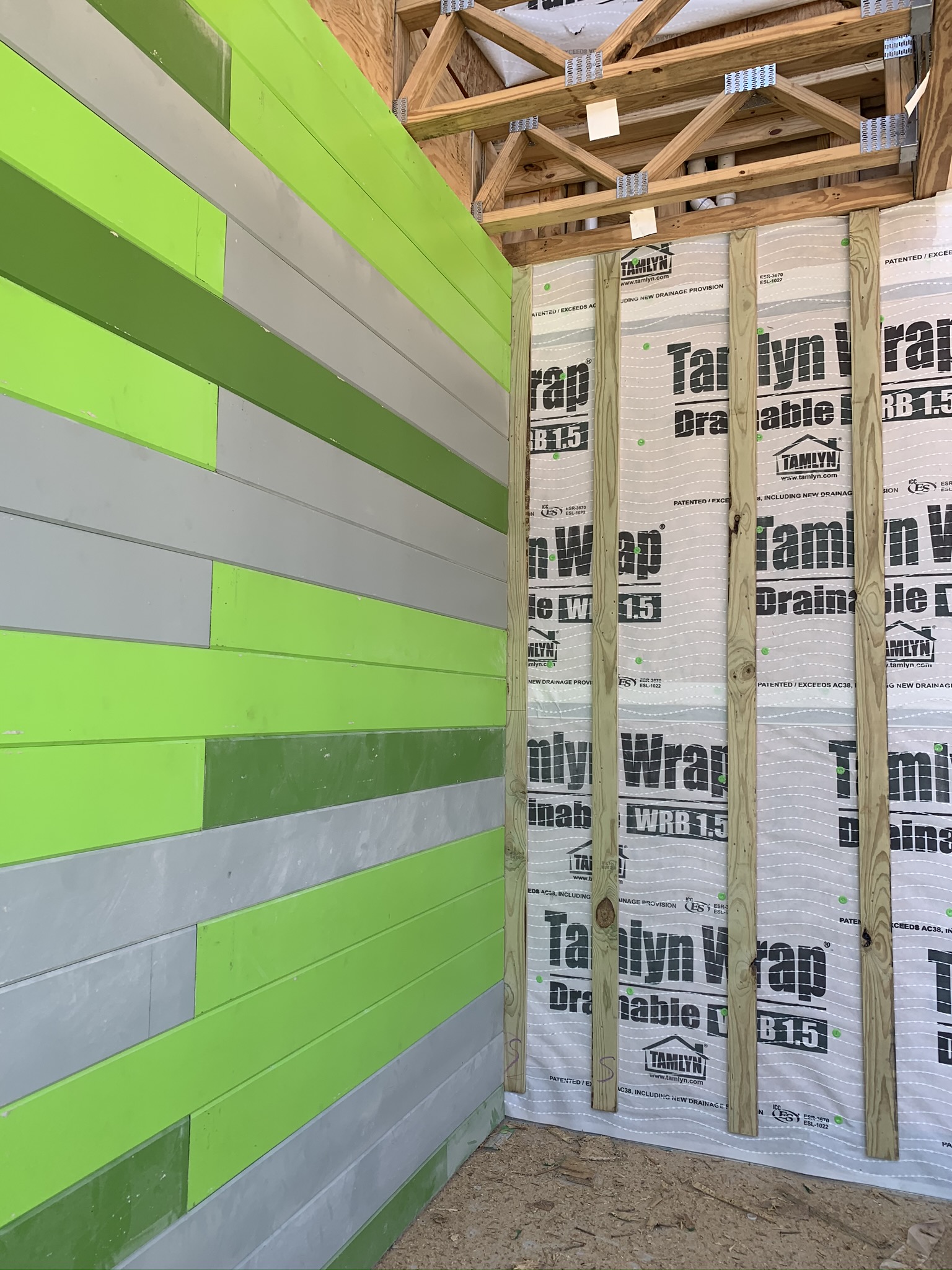

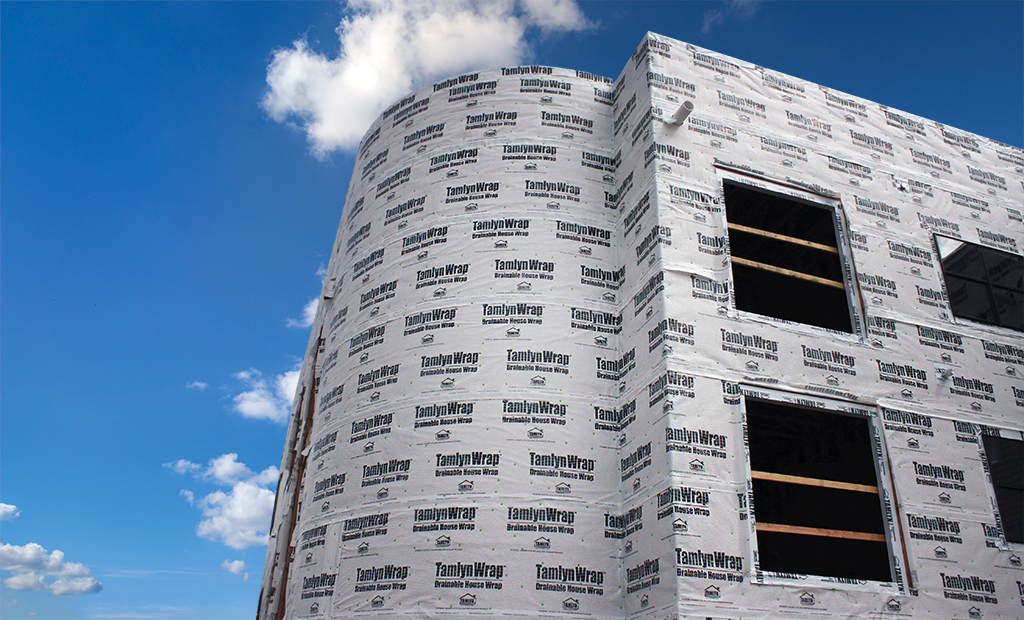

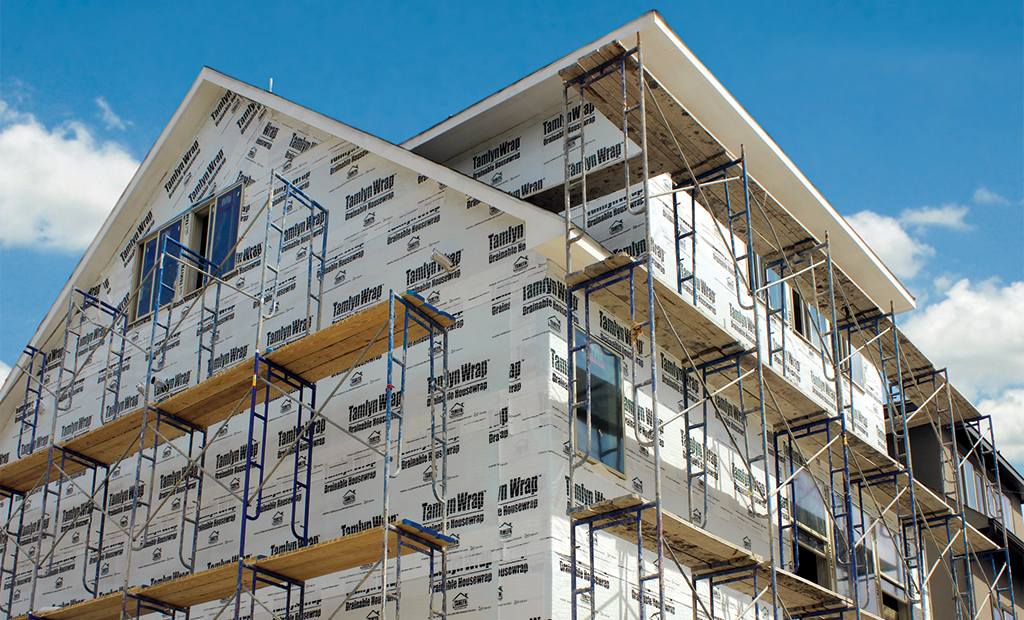

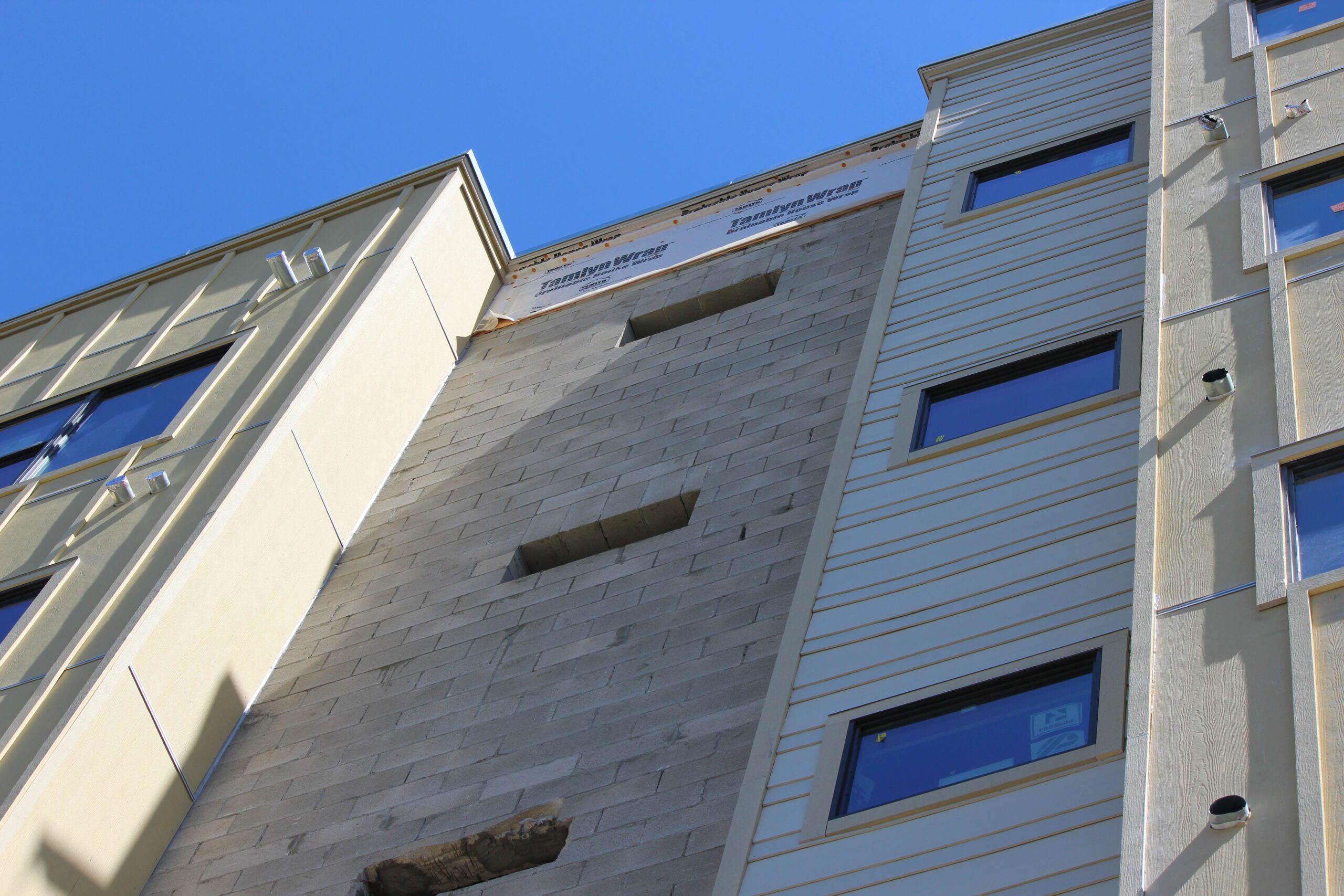

Explore Tamlyn’s job site photos for product application ideas for your next renovation project or new home build.
